Código de producto : VF--QCC-Q155-CU

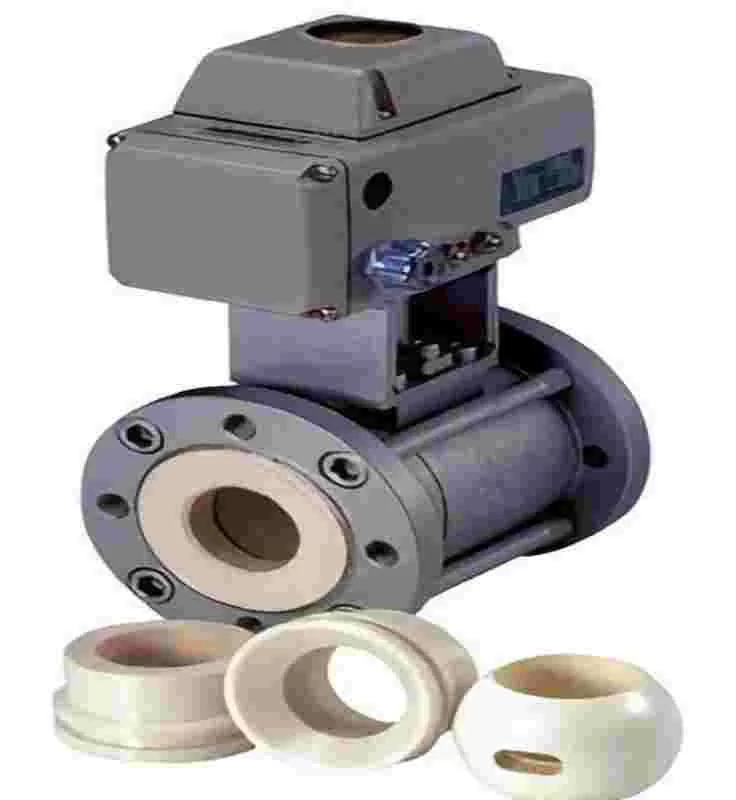

Name: wear-resistant, corrosion-resistant ceramic ball valve Q41G
Specifications: DN15 ~ 200
Model: Q41G
Nominal diameter: DN15~150
Nominal pressure: 1.6~2.5MPa
Applicable temperature: -29~200℃
Material: WCB fully lined with ceramic, 304 fully lined with ceramic, 316 fully lined with ceramic
Contáctenos si necesita servicios personalizados. Le informaremos el precio y la disponibilidad en 24 horas.
Producto | Código de producto | Pureza | Tamaño | Contáctenos |
This series of fully lined ceramic ball valve, its contact with the medium all use very strong corrosion resistance of structural ceramic production, with metal valves can not match the corrosion resistance, is a strong corrosion under the titanium valve, Monel valve ideal alternative products, and has a strong wear resistance, erosion resistance, service life is 2 to 4 times the titanium valve, highlighting its cost performance advantage. It is suitable for desulfurization in power plant, slurry conveying in fertilizer plant and strong corrosive medium such as coking and papermaking. The driving mode is manual, pneumatic, electric and so on.
This series of fully lined ceramic ball valve, its contact with the medium all use very strong corrosion resistance of structural ceramic production, with metal valves can not match the corrosion resistance, is a strong corrosion under the titanium valve, Monel valve ideal alternative products, and has a strong wear resistance, erosion resistance, service life is 2 to 4 times the titanium valve, highlighting its cost performance advantage. It is suitable for desulfurization in power plant, slurry conveying in fertilizer plant and strong corrosive medium such as coking and papermaking. The driving mode is manual, pneumatic, electric and so on.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
