Código de producto : VF--QCC-Q154-CU
Design and manufacture: according to ANSI B16.34 inspection test: according to API598
Structure length: GB/T 15188.3-94
Working pressure: PN4.0MPa or less
Temperature range: MF-40~232℃ -40~500℉
MP-40~300℃ -40~572℉
Applicable media: (C) water, oil, gas (P) nitric acid (R) acetic acid
Thread standard: BSP, BSPT, NPT, DIN259/2999, ISO7/1-1982, ISO228/1-1982, RP, RC
Product specification: 1/4"~5"
Material Standards (C) ASTM A216-WCB, DIN1.619 (P) (R) ASTM A351-CF8 (304), DIN1.4308; ASTM A351-CF8M (316), DIN 1.4408
Contáctenos si necesita servicios personalizados. Le informaremos el precio y la disponibilidad en 24 horas.
| Producto | Código de producto | Pureza | Tamaño | Contáctenos |

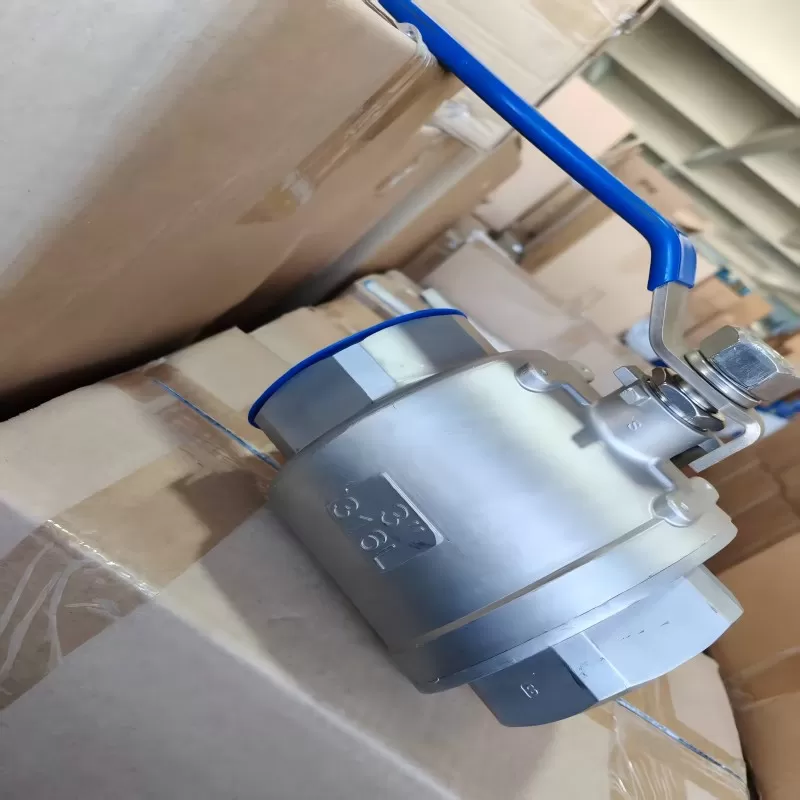

The internal thread two-piece ball valve and gate valve are the same type of valve, the difference is that its closing part is a ball, and the ball rotates around the center line of the valve body to achieve the opening and closing of a valve. Ball valves are mainly used to cut off, distribute and change the flow direction of the medium in the pipeline.
Product Application:
Widely used in food, pharmaceutical, petrochemical, electric power, metallurgy and other industrial pipelines.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
