Código de producto : VF--ZCC-Z100-CU
Product model: Z41F, Z41PFA
Nominal pressure: PN0.6MPa-PN1.6MPa
Nominal diameter: DN25-DN500
Flange standards: National standard GB/T9119-2010, Ministry of Chemical Industry HG/T20592-2009, American standard ANS B1S52212, ANSI B16.5a, Japanese standard JIS B2212;
Valve body material: WCB, CF8, CF8M, CF3, CF3M;
Gate plate material: WCB, SS304, SS316, SS304L, SS316L stainless steel;
Lining materials: F46, PFA, PTFE.
Contáctenos si necesita servicios personalizados. Le informaremos el precio y la disponibilidad en 24 horas.
| Producto | Código de producto | Pureza | Tamaño | Contáctenos |

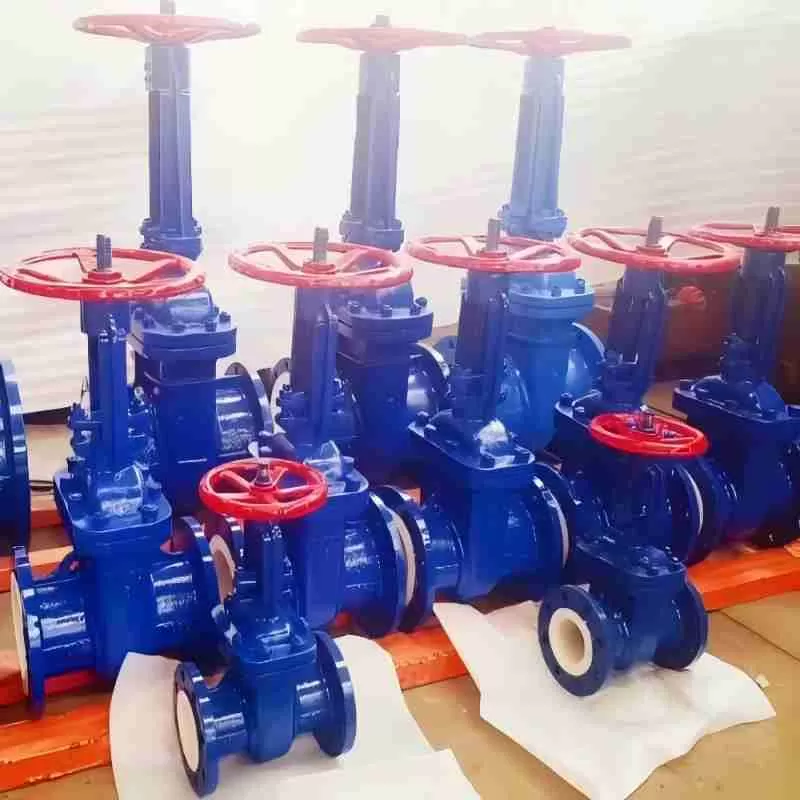

Z41F46- Manual flange fluorine-lined gate valve is a rising stem wedge gate valve with double-sided sealing. Its sealing performance has been tested by both water pressure and air pressure and meets the standard requirements. Fluorine-lined gate valves can be used in industries such as chemical engineering, petroleum, and water treatment, with clean liquids and gases as the media.
Fluorine-lined gate valves can be used in industries such as chemical engineering, petroleum, and water treatment, with clean liquids and gases as the media.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
