Código de producto : VF--CF-C9-CU

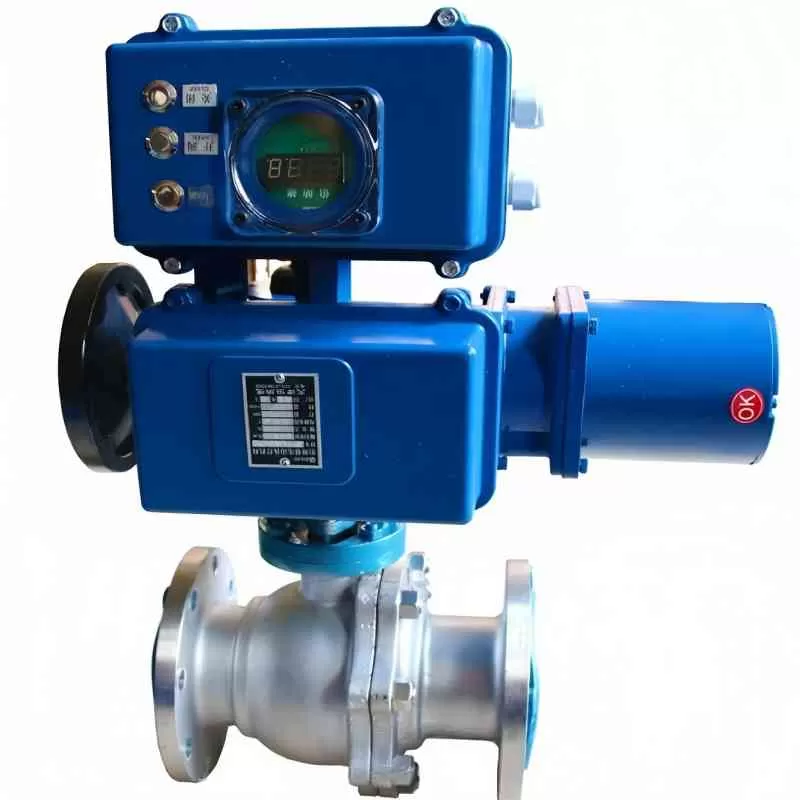

Product name: Electric ball valve lined with fluorine
Product model: Q941F46
Nominal diameter: DN15 ~ DN300
Structure form: spherical
Nominal pressure: 1.6Mpa ~ 6.4Mpa
Connection mode: flange
Applicable temperature: ≤450? C
Driving mode: manual, pneumatic, electric
Body material: cast steel, stainless steel
Manufacturing standards: GB, DIN, API, ANSI
Applicable media: water, oil, gas, heat conduction oil, liquid
Contáctenos si necesita servicios personalizados. Le informaremos el precio y la disponibilidad en 24 horas.
| Producto | Código de producto | Pureza | Tamaño | Contáctenos |
Q941F46 Electric fluorine lined ball valve is composed of electric actuator and O-type fluorine lined ball valve. The inner cavity and ball core of the valve body are lined with corrosion-resistant and age-resistant polyperfluoroethylene, so it has reliable corrosion resistance and sealing property. Electric fluorine lined ball valve is mainly used for regulating or cutting off strong corrosive media such as acid and alkali in the production process. Electric actuator built-in servo system, no additional servo amplifier, input 4-20mA signal and 220VAC/380V power supply can control the operation. Electric fluorine lined ball valve, PTFE lined electric ball valve has the advantages of simple connection, compact structure, small size, light weight, small resistance, stable and reliable action.
Electric fluorine lined ball valve is mainly used for regulating or cutting off strong corrosive media such as acid and alkali in the production process
