Código de producto :
Hiperco® 50 is an iron-cobalt-vanadium soft magnetic alloy which exhibits high magnetic saturation (24 kilogauss), high D.C. maximum permeability, low D.C. coercive force, and low A.C. core loss. This alloy is produced in strip form only and contains a small niobium addition for grain refinement during mill processing and final heat treatment of strip. Hiperco® 50 alloy is used primarily for rotor and stator laminations stamped from cold rolled strip and final annealed in a protective atmosphere or vacuum environment at a temperature which will provide an optimum combination of mechanical and magnetic properties to withstand the high stresses encountered in service. E FORU provides Hiperco® strip, as well as end to end stator and rotor stack production.
Contáctenos si necesita servicios personalizados. Le informaremos el precio y la disponibilidad en 24 horas.
| Producto | Código de producto | Pureza | Tamaño | Contáctenos |
Product Information
Hiperco® 50 is an iron-cobalt-vanadium soft magnetic alloy which exhibits high magnetic saturation (24 kilogauss), high D.C. maximum permeability, low D.C. coercive force, and low A.C. core loss. This alloy is produced in strip form only and contains a small niobium addition for grain refinement during mill processing and final heat treatment of strip. Hiperco® 50 alloy is used primarily for rotor and stator laminations stamped from cold rolled strip and final annealed in a protective atmosphere or vacuum environment at a temperature which will provide an optimum combination of mechanical and magnetic properties to withstand the high stresses encountered in service. E FORU provides Hiperco® strip, as well as end to end stator and rotor stack production.
Synonyms
Cobalt vanadium stainless steel, Hiperco 50, Hiperco50, Hiperco 50A, Wrought Iron-Cobalt High Magnetic Saturation Alloy, UNS. R30005, K926501, 1J22, Permendur 49, Supermendur, 2V-Permendur, 49Fe-49Co-2V, Vanadium Permendur, Permendur 2V, N690CO, N690, FeCoV, CoVFe, CoVFeFe, VCoFe, FeVCo, VACODUR 50, VACOFLUX 48, VACOFLUX 50, Vicalloy

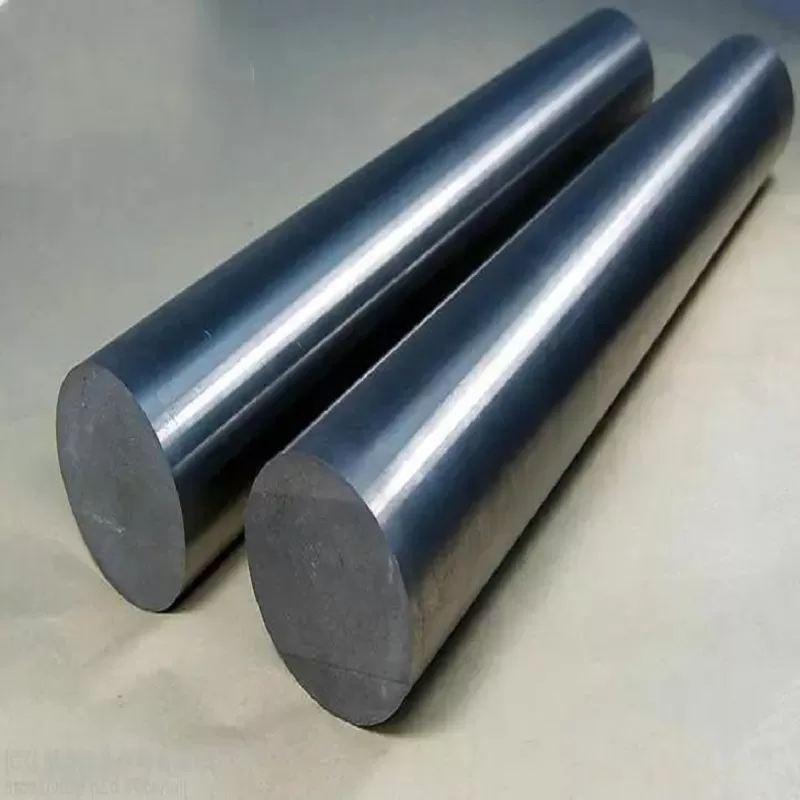

Hiperco® 50 Rod
