Cerium Hexaboride part, CeB6 part Cerium Hexaboride (CeB6, also known as Cerium boride) is an inorganic chemical. It is a refractory ceramic material, which is insoluble in water or hydrochloric acid and very stable in a vacuum. Stoichiometric samples of CeB6 have a blue metallic luster. CeB6 is also a superconductor and semiconductor with a relatively high melting point of 2552 ℃. Cerium Boride or (Cerium Hexaboride) is generally immediately available in most volumes. Borides are all hard, high-melting materials with metal-like conductivity. They are stable to nonoxidizing acids but break down in strong oxidizing agents and strong alkalis. Cerium boride part, also known as cerium hexaboride part or CeB6, is a refractory ceramic material. The main use of cerium hexaboride is a hot cathode coating or a hot cathode made of cerium hexaboride crystals. It usually operates at a temperature of 1450 ° C.
Contáctenos si necesita servicios personalizados. Le informaremos el precio y la disponibilidad en 24 horas.
Product Information
Cerium Hexaboride part, CeB6 part Cerium Hexaboride (CeB6, also known as Cerium boride) is an inorganic chemical. It is a refractory ceramic material, which is insoluble in water or hydrochloric acid and very stable in a vacuum. Stoichiometric samples of CeB6 have a blue metallic luster. CeB6 is also a superconductor and semiconductor with a relatively high melting point of 2552 ℃. Cerium Boride or (Cerium Hexaboride) is generally immediately available in most volumes. Borides are all hard, high-melting materials with metal-like conductivity. They are stable to nonoxidizing acids but break down in strong oxidizing agents and strong alkalis. Cerium boride part, also known as cerium hexaboride part or CeB6, is a refractory ceramic material. The main use of cerium hexaboride is a hot cathode coating or a hot cathode made of cerium hexaboride crystals. It usually operates at a temperature of 1450 ° C.
Synonyms
Cerium hexaboride, CeBix, CEBI
Cerium Hexaboride part Specifications
Dimensions
Per your request or drawing
We can customized as required
Properties（Theoretical）
| Compound Formula | CeB6 |
| Molecular Weight | 204.98 |
| Appearance | Purple |
| Melting Point | 2552°C |
| Density | 4.80-4.87 g/cm3 |
| Solubility in water | insoluble |
| Crystal structure | Cubic |
| Stoichiometry | ~6 |
| Metal Impurities | <30 Ppm by wt. |
| Coefficient of Thermal Expansion | 6.2α*106 |
| Electrical Resistivity | ~65μΩ-cm |
| Effective Work Function(100) at 1800K | 2.65 eV |
| Spectral Emissivity at 0.65 Microns | 0.779 |
| Evaporation Rate at 1800K(UHV) | 1.6×10-9 g |
| Orientation Limit for a Specific Orientation | <2 Degrees |
| Pyrolitic Block Mount Resistance at 1800K | 1.45 Ohms |
LaB6 Part vs. CeB6 Part
| Material | CeB6 | LaB6 |
| Brightness (A/cm2-sr) | 107 | 107 |
| Metal Impurities(ppm by wt.) | ＜30 | ＜30 |
| Stoichiometry | ~6 | ~6 |
| Short-term beam current stability % RMS | <1 | <1 |
| Density(g/cm3) | 4.80 | 4.72 |
| Typical service life (hr) | 1,500+ | 1000+ |
| Operating vacuum (torr) | 10-7 | 10-7 |
| Work function (eV) | ~2.65 | ~2.70 |
| Evaporation rate (g/cm2-sec) | 1.6 x 10-9 | 2.2 x 10-9 |
| Effective Work Function (100) at 1800 K(eV) | 2.65 | 2.70 |
| Spectral Emissivity at 0.65 microns | 0.779 | 0.765 |
| Electrical Resistivity(µΩ-cm) | ~65 | ~50 |
| Orientation limit for a specific orientation(degrees) | ＜2 | ＜2 |
| Pyrolitic block mount resistance @ 1800 K(Ohms) | 1.45 | 1.45 |

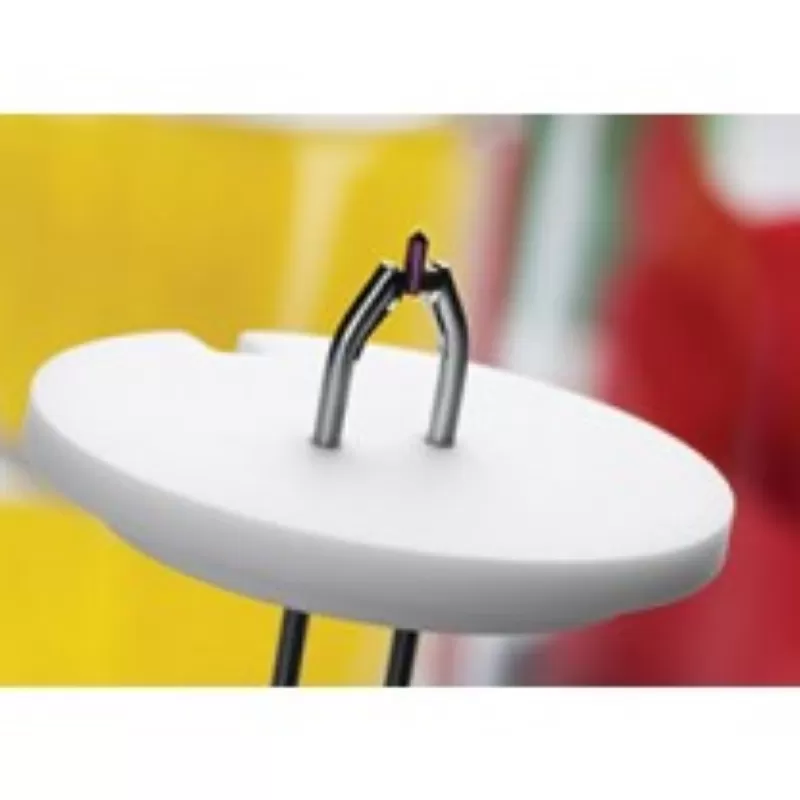

Applications of Cerium Hexaboride Part
-Thermionic emission (cathode)
–Plasma soure for plasma enhanced coating (PECVD)
-Vacuum electron beam welding machine
-Electron beam surface reforming device
-Electron beam lithography device
-Transmission electron microscope
-Scanning electron microscope such as SEM, TEM
-Surface analysis device
-Radiotherapy devices
X-ray Discs
Packing of Cerium Hexaboride Part
Standard Packing:
Sealed bags in carton boxes. Special package is available on request.
As a ceramic material, CeB6 is quite fragile in a lot of cases. The CeB6 part are usually held in plastic bags by vacuum, and protected with heavy foam.
E FORUs’ CeB6 part is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | CeB6 |
| MDL Number | N/A |
| EC No. | 234-526-9 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | N/A |
| IUPAC Name | N/A |
| SMILES | N/A |
| InchI Identifier | InChI=1/B6.Ce/c1-2-3(1)5(1)4(1,2)6(2,3)5;/q-2;+2 |
| InchI Key | N/A |
