Código de producto : VF--DCC-D33-CU
Product model: D341X
Nominal diameter: DN50 ~ 1000mm
Nominal pressure: PN0.6~1.6MPa
Applicable temperature: ≤120℃
Body material: all kinds of rubber, PTFE
Driving form: manual, worm gear drive, gas drive, electric drive
Applicable medium: air, water, sewage, steam, gas, oil, etc. Design standard: GB/T2238-1989
Flange connection size: GB/T9113.1-2000; GB/T9115.1-2000; JB78
Structure length: GB/T12221-1989
Pressure test: GB/T13927-1992; JB/T9092-1999
Contáctenos si necesita servicios personalizados. Le informaremos el precio y la disponibilidad en 24 horas.
| Producto | Código de producto | Pureza | Tamaño | Contáctenos |
Applicable medium：Water and neutral liquid
Suitable temperature：- 20 ~ 120 ℃
Application field：Municipal construction, water conservancy projects, water supply and drainage, water treatment, etc.

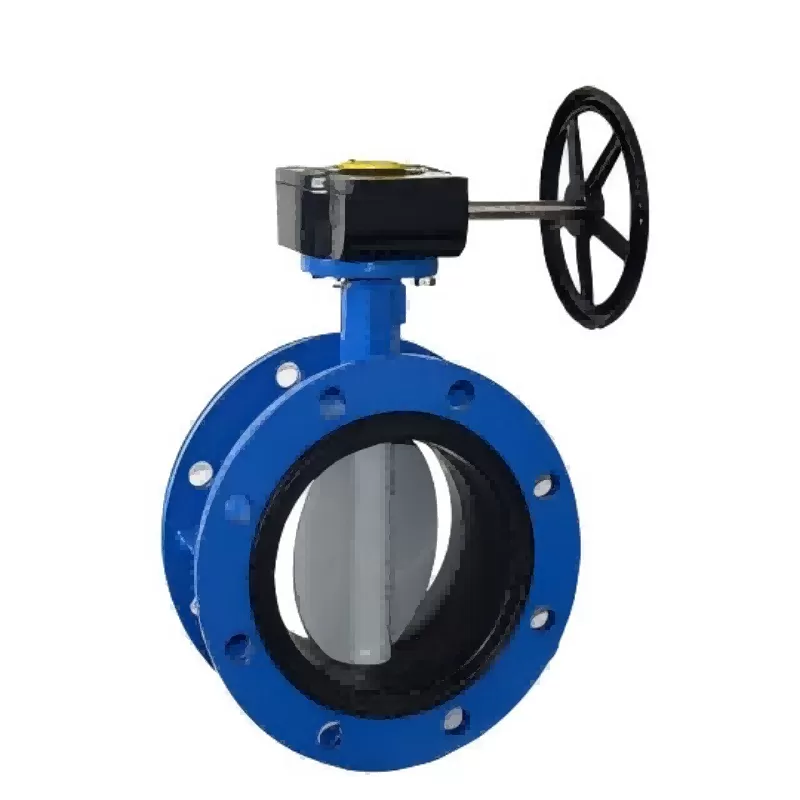

The worm wheel flange type soft seal butterfly valve is suitable for regulating the flow and stopping the medium of food, medicine, chemical industry, petroleum, electric power, textile, paper and other water supply and drainage and gas pipelines with the temperature ≤120℃ and nominal pressure ≤1.6MPa.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
