Código de producto : VF--DCC-D83-CU
Main parameters
【 Product Model 】: D71F-16P
【 Diameter 】: DN50-200
【 Nominal Pressure 】: PN1.0-1.6Mpa
【 Applicable Temperature 】: ≤150℃
【 Applicable Media 】: Sewage, seawater, petroleum, strong acids and alkalis, and organic solvents, etc
【 Valve body Material 】: Stainless Steel 304, 316
Contáctenos si necesita servicios personalizados. Le informaremos el precio y la disponibilidad en 24 horas.
| Producto | Código de producto | Pureza | Tamaño | Contáctenos |

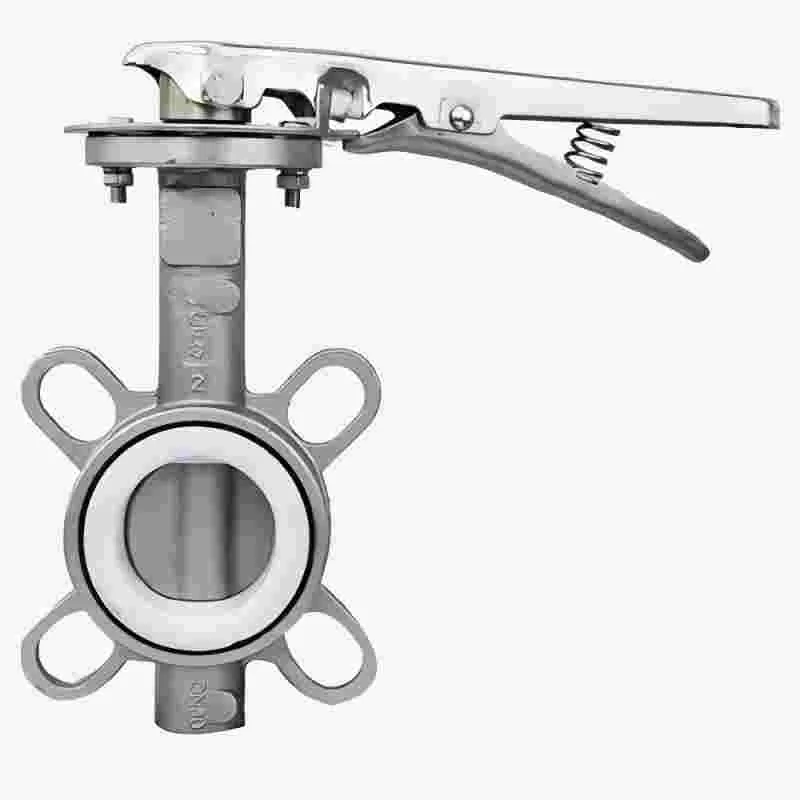

The D71F-16P stainless steel lined PTFE butterfly valve is composed of a PTFE sealed butterfly valve, a stainless steel butterfly plate and a valve stem. The valve body is made of stainless steel 304 and 316, and the sealing ring is made of polytetrafluoroethylene, which has excellent corrosion resistance and a long service life. The wafer type connection makes the installation, disassembly and use of the valve very convenient. The entire butterfly valve is compact and lightweight, with reliable sealing performance and strong acid and corrosion resistance. It is widely used in fields such as water supply and drainage, power generation, petroleum, chemical engineering, and metallurgy, and is suitable for various media.
The entire butterfly valve is compact and lightweight, with reliable sealing performance and strong acid and corrosion resistance. It is widely used in fields such as water supply and drainage, power generation, petroleum, chemical engineering, and metallurgy, and is suitable for various media.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
