Código de producto : VF--DCC-D89-CU
Main parameters
【 Product Model 】: D41X-10/16Q
【 Diameter 】: DN50-DN200
【 Nominal Pressure 】: PN10/16
【 Applicable Temperature 】: -20 to 120℃
【 Applicable Media 】: Fresh water, sewage, seawater, weak acids and alkalis, air, steam, etc
【 Valve body Material 】: Ductile iron
Contáctenos si necesita servicios personalizados. Le informaremos el precio y la disponibilidad en 24 horas.
| Producto | Código de producto | Pureza | Tamaño | Contáctenos |

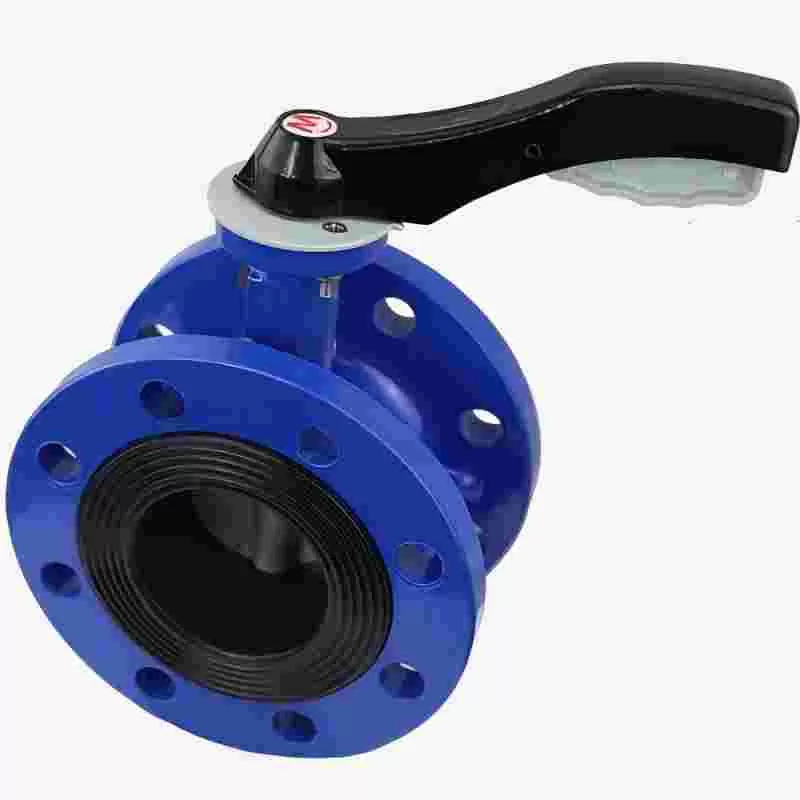

The D41X aluminum handle double flange butterfly valve has a very simple structure, is compact and lightweight, has good sealing performance and a long service life. The handle is made of aluminum and can be used for on-off control of low-pressure pipeline media. The D41X aluminum handle double flange butterfly valve is mainly used for drainage in water plants, power plants, steel mills, papermaking, chemical and other systems, and is particularly suitable for use as a flow regulating device in water supply pipelines.
The D41X aluminum handle double flange butterfly valve is mainly used for drainage in water plants, power plants, steel mills, papermaking, chemical and other systems, and is particularly suitable for use as a flow regulating device in water supply pipelines.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
