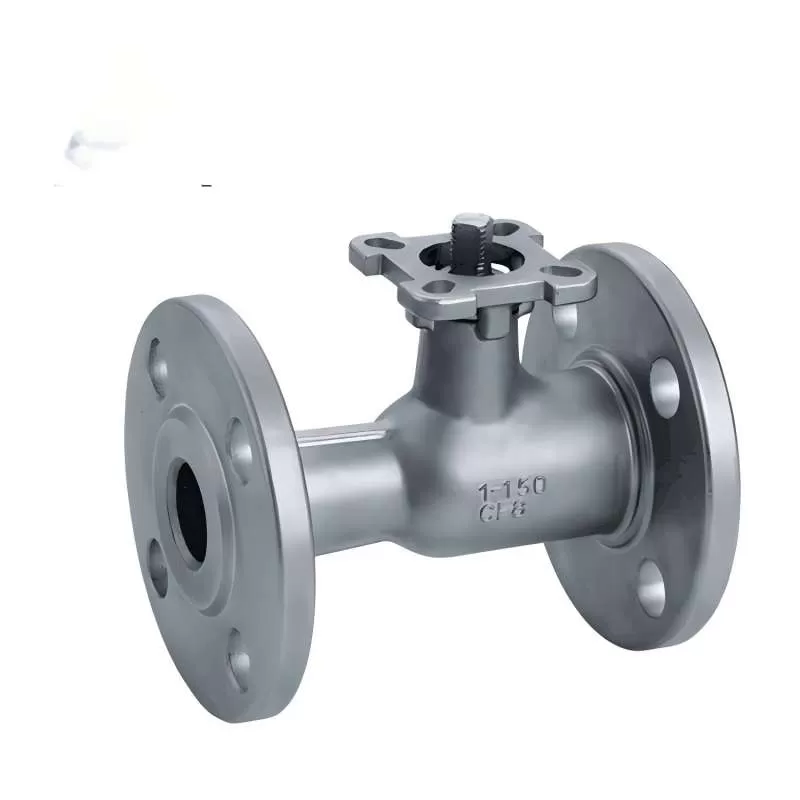

Integrated high platform ball valve, High Platform Integrated High Temperature Ball Valve,Ball Valve, high platform flange ball valve,

Third, structural characteristics

In line with manufacturing standards: usually using ISO5211 manufacturing standards, a square or round flange and ball valve cast as an integral, and the platform end face higher than the outer edge of the two ends of the flange, this structure is different from ordinary ball valves, ordinary ball valves usually do not have such an integrated design2.

Easy to install the actuator: It can be directly connected to the drive actuator without adding a connection bracket. This simplifies the installation process and also improves the stability between the valve and the actuator. In contrast, ordinary ball valves need to be mounted on the support before the actuator can be installed, and the installation process is relatively complex

Applicable medium and temperature

Applicable media: water, steam, oil, heat conduction oil, etc.

Operating temperature: ordinary seal ≤200℃, reinforced composite graphite ≤300℃. Its nominal diameter is DN15-DN200.

It is used in boiler, petroleum, chemical, rubber, paper making, pharmaceutical and other industries.
