Código de producto : VF--QCC-Q82-CU
Product range
Size :2 "~ 56"
Pressure :150# ~ 2500#
Body material: carbon steel, stainless steel, etc
Internal parts :A105+ENP, 13Cr, F304, F316
Connection mode :RF, RTJ, BW
Operation: hand wheel, gear, electric, pneumatic
Full bore or reduced bore
Fire test design
ISO5211 Installation Platform
Low emission certification
Optional dual exhaust effect seat ring
Previous
Contáctenos si necesita servicios personalizados. Le informaremos el precio y la disponibilidad en 24 horas.
| Producto | Código de producto | Pureza | Tamaño | Contáctenos |

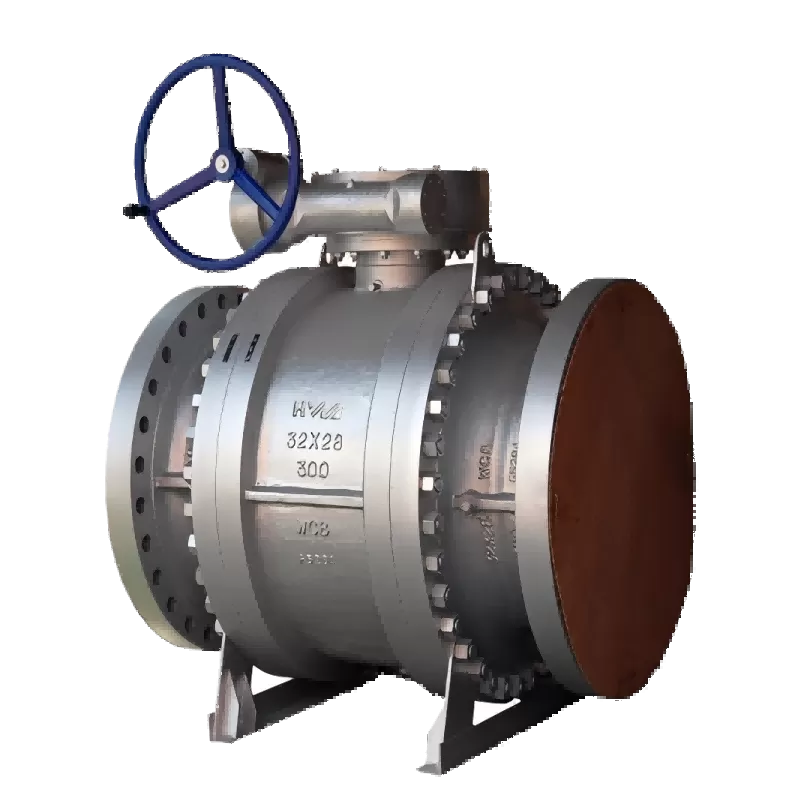

Fixed ball valve has two block type and three block type two valve body structure, the middle flange is connected by bolts, the seal is reinforced polytetrafluoroethylene inserted into the stainless steel ring, the rear of the ring is provided with a spring to ensure that the seat is close to the ball, keep the seal. The upper and lower valve stem are equipped with PTFE bearings to reduce friction and save effort in operation. The adjustment plate is provided at the bottom of the small shaft to ensure the contact position of the ball and the sealing ring. Full diameter: The valve flow aperture is consistent with the inner diameter of the pipeline for pipeline cleaning
Fixed ball valve has two block type and three block type two valve body structure, the middle flange is connected by bolts, the seal is reinforced polytetrafluoroethylene inserted into the stainless steel ring, the rear of the ring is provided with a spring to ensure that the seat is close to the ball, keep the seal. The upper and lower valve stem are equipped with PTFE bearings to reduce friction and save effort in operation. The adjustment plate is provided at the bottom of the small shaft to ensure the contact position of the ball and the sealing ring. Full diameter: The valve flow aperture is consistent with the inner diameter of the pipeline for pipeline cleaning
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
